50m3/hr Trailer Concrete Pump With Diesel or Electric Power

50m3/hr Trailer Concrete Pump With Diesel or Electric Power

Model: D/HBT50S

Item specifics

Pumping Capability: 50 cubic meter per hour

Valve: S shape

Loading Hopper: 600L

Engine: 56KW Lovol

Pumping Horizontal Distance: 570m

Pumping Vertical: 190m

Delivery Pressure: 110 Bar

Review

Description

Instruction:

Concrete Pump was a kind of useful and efficient concrete high pressure transport pump, widely used in highway, railway, bridge, building, tunnels, ports, water conservancy and other projects of grouting pressure, grouting mortar, concrete, large particle slurry grouting, spraying work, has the working pressure, pumping ability strong, grouting with high efficiency, smooth coating, using solid, etc.

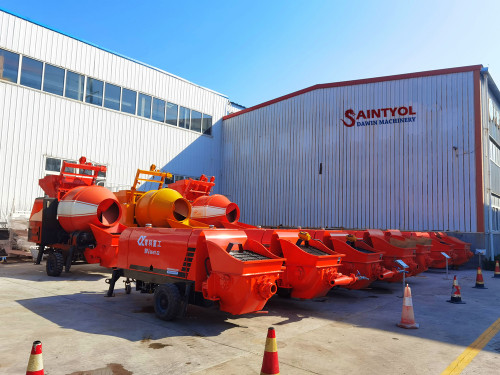

Saintyol DAWIN Machinery Concrete pump design is light, easy to move, suitable for small and middle construction projects.

The S-valve series concrete pump is a new generation product developed by combining latest technologies both at home and abroad.

The products have passed ISO9001-2008 quality management system certification and CE certification.

Our workers strictly control all the machining processes and assembly quality, give final test to every pump by simulation working conditions and overload experiments to ensure customers zero fault as first operation.

Features:

1. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation

2. Plunger pump with constant power, to ensure the efficiency of main engine

3. Good sealing S-valve, installed with floating wear resistant ring

4. High-quality wear resistant alloy components for long service-life

5. Trailer concrete pumps High delivery pressure for demand of high-rise and long distance projects

6.Air cooling system, without dependence of external water

7. PLC system to ensure best control performance

8. With re-pumping function to smooth construction of better accessibility

9. Equipped with wired remote controller, easy to operate

Diesel DHBT50S-13-56 Specifications:

Item		Unit	Parameter
Concrete pump	Max. theoretic concrete delivery volume	m³/h	50
	Max. theoretic delivery pressure	MPa	12.5
	Max. delivery frequency	times/min	22
	Type of distribution valve		S tube valve
	Main oil cylinder specification: cylinder dia./role dia.× stroke	Mm	Φ125/Φ80×1200
	Diameter of delivery cylinder	Mm	Φ200
	Hopper capacity	L	800
	Output opening diameter	Mm	150
Power system	Rated power of diesel engine	KW	56 (LOVOL)
Power system	Revolution	r/min	2200
Hydralic system	Type of Hydraulic oil circuit		Open circuit
	Maximum oil pressure of main system	MPa	32
	Max. mixing speed	r/min	42
	Hydraulic oil tank volume	L	420
Other parameters	High and low pressure switch		Equipped
	Max. Aggregate	mm	Pebble :50mm, Crushed Stone:40mm
	Procedure-control electric lubricating system		Equipped
	Max. delivery distance	horizontal	450m
	Max. delivery distance	vertical	160m
	Weight	Kg	4000
	Overall Dimension	mm	527018601880

Electric HBT50S-13-55 Specifications:

Item		Unit	Parameter
Concrete pump	Max. theoretic concrete delivery volume	m³/h	50
	Max. theoretic delivery pressure	MPa	12.5
	Max. delivery frequency	times/min	22
	Type of distribution valve		S tube valve
	Main oil cylinder specification: cylinder dia./role dia.× stroke	Mm	Φ125/Φ80×1200
	Diameter of delivery cylinder	Mm	Φ200
	Hopper capacity	L	600
	Output opening diameter	Mm	150
Power system	Rated power of Motor	KW	55
Power system	Revolution	r/min	2200
Hydralic system	Type of Hydraulic oil circuit		Open circuit
	Maximum oil pressure of main system	MPa	32
	Max. mixing speed	r/min	42
	Hydraulic oil tank volume	L	420
Other parameters	High and low pressure switch		Equipped
	Max. Aggregate	mm	Pebble :50mm, Crushed Stone:40mm
	Procedure-control electric lubricating system		Equipped
	Max. delivery distance I	horizontal	450m
	Max. delivery distance I	vertical	160m
	Weight	Kg	3500

Main Parts:

Electric Motor

Name: BEIDE Motor

Brand: Semens

Original: Germany

Famous engines at home and abroad, Yantai Motor and Beide Motor of Siements. which have a strong driving force, low fuel consumption and high efficiency.

Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins

Diesel engine adopts Tianjin LOVOL or Yuchai or Weichai or Cummins as custom request, which has low energy consumption and high efficiency.

Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.

Main Oil Pump

Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.

Centralized lubricating system

The lubricant will be injected to the main oil line by the plunger pump and distributed to each lubrication point by the distributor. Point-to-point lubrication protects main components from wear and tear.

Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability

Hydraulic pipe joints

Hose joints: American Eaton; Pipeline: Original from Italy.

A set of these supported by Eaton.

S Valve

Brand: joint venture brand

Original: Germany

S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.
