40m3/hr Trailer Concrete Pump With Diesel or Electric Power

40m3/hr Trailer Concrete Pump With Diesel or Electric Power

Model: D/HBT40S

Item specifics

Pumping Capability: 40 cubic meter per hour

Valve: S shape

Loading Hopper: 600L

Engine: 56KW Lovol

Pumping Horizontal Distance: 570m

Pumping Vertical: 190m

Delivery Pressure: 110 Bar

Review

Description

Instruction:

Concrete Pump was a kind of useful and efficient concrete high pressure transport pump, widely used in highway, railway, bridge, building, tunnels, ports, water conservancy and other projects of grouting pressure, grouting mortar, concrete, large particle slurry grouting, spraying work, has the working pressure, pumping ability strong, grouting with high efficiency, smooth coating, using solid, etc.

Saintyol DAWIN Machinery Concrete pump design is light, easy to move, suitable for small and middle construction projects.

The S-valve series concrete pump is a new generation product developed by combining latest technologies both at home and abroad.

The products have passed ISO9001-2008 quality management system certification and CE certification.

Our workers strictly control all the machining processes and assembly quality, give final test to every pump by simulation working conditions and overload experiments to ensure customers zero fault as first operation.

Features:

1. Intelligent power control system to regulate the engine speed automatically, for smooth and efficient operation

2. Plunger pump with constant power, to ensure the efficiency of main engine

3. Good sealing S-valve, installed with floating wear resistant ring

4. High-quality wear resistant alloy components for long service-life

5. High delivery pressure for demand of high-rise and long distance projects

6.Air cooling system, without dependence of external water

7. PLC system to ensure best control performance

8. With re-pumping function to smooth construction of better accessibility

9. Saintyol DAWIN Concrete Pumps Equipped with wired remote controller, easy to operate

Diesel DXBS40S-11-56 Specifications:

Item		Unit	Parameter
Pumping system	Theoretical max. discharging volume	m³/h	40
	Theoretical max. delivery pressure	M pa	11
	Max. delivery frequency	times/min	32
	The type of distribution valve		S tube valve
	Specification of delivery cylinder	mm	140×1200
	Specification of main oil cylinder	mm	Φ100×Φ50×1200
	Oil tank capacity	L	200
	Outlet opening diameter	mm	Φ125
	Inner dia. of delivery pipe	mm	Φ100(Φ80)
	Diesel engine power	KW	56 KW (1004-4 Lovol Engines)
	Rated speed	r/min	2200
Hydraulic system	Hydraulic oil circuit type		Open circuit
	Max. oil pressure of pumping system	M Pa	25
	Max. oil pressure of mixing system	M Pa	9
	Max. mixing speed	r/min	40
	Max. diameter of aggregates	mm	30
	Outlet dimension (length ×width ×height)	mm	4500×1500×1720
	Weight	Kg	2700
	Pulling speed	Km/h	≤8
	Theoretical Max. delivery distance	horizontal	570 m
	Theoretical Max. delivery distance	vertical	190m

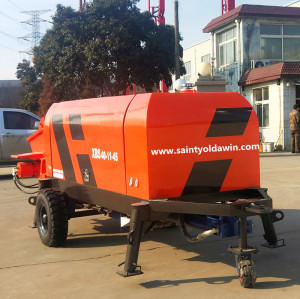

Electric XBS40-11-45 Specifications:

	Item	Unit	Parameters
Whole machine performance	Theoretical max. delivery volume	m³/h	40
	Theoretical max. delivery pressure	Mpa	11
	Max. delivery frequency	次/min	30
	The type of distribution valve		S tube valve
	Specification of delivery cylinder	mm	Φ140×800
	Specification of main oil cylinder	mm	Φ80/Φ50×800
	Outlet opening diameter	mm	Φ125
	Hopper capacity	L	300
Power system	Rated voltage	V	～380
	Main motor power	Kw	45
	Rated speed	r/min	1470
	Assistant motor power	Kw	3
	Rated speed	r/min	1430
Hydraulic system	Hydraulic oil circuit type		Open circuit
	Max. oil pressure of pumping system	MPa	25
	Max. oil pressure of mixing system	MPa	9
	Max. mixing speed	r/min	24
	Oil tank capacity	L	200
Other parameters	Max. diameter of aggregates	mm	25
	Inner dia. of delivery pipe	mm	Φ80
	Dimension (length×width×height)	mm	4300×1500×1500
	Overall weight	Kg	2100
	Pulling speed	Km/h	≤8

Main Parts:

Electric Motor

Name: BEIDE Motor

Brand: Semens

Original: Germany

Famous engines at home and abroad, Yantai Motor and Beide Motor of Siements. which have a strong driving force, low fuel consumption and high efficiency.

Diesel engine

Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins

Diesel engine adopts Tianjin LOVOL or Yuchai or Weichai or Cummins as custom request, which has low energy consumption and high efficiency.

Pumping System

Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,

DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.

Main Oil Pump

Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.

Centralized lubricating system

The lubricant will be injected to the main oil line by the plunger pump and distributed to each lubrication point by the distributor. Point-to-point lubrication protects main components from wear and tear.

Cooling System

It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability

Hydraulic pipe joints

Hose joints: American Eaton; Pipeline: Original from Italy.

A set of these supported by Eaton.

S Valve

Brand: joint venture brand

Original: Germany

S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.
