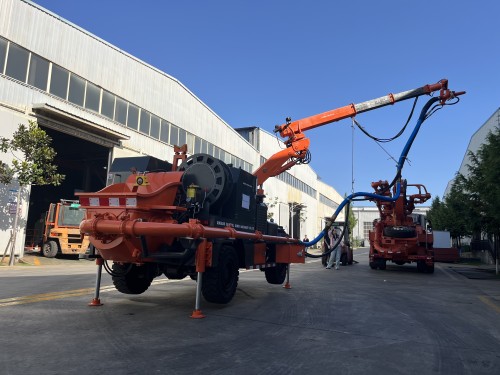

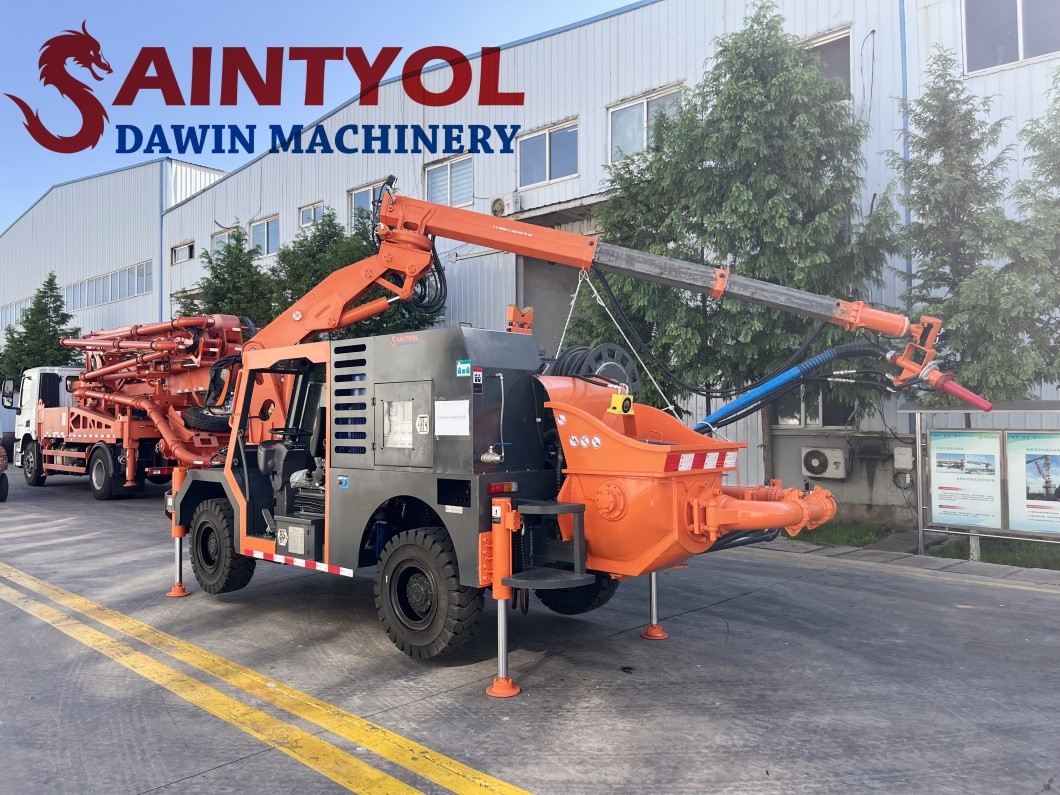

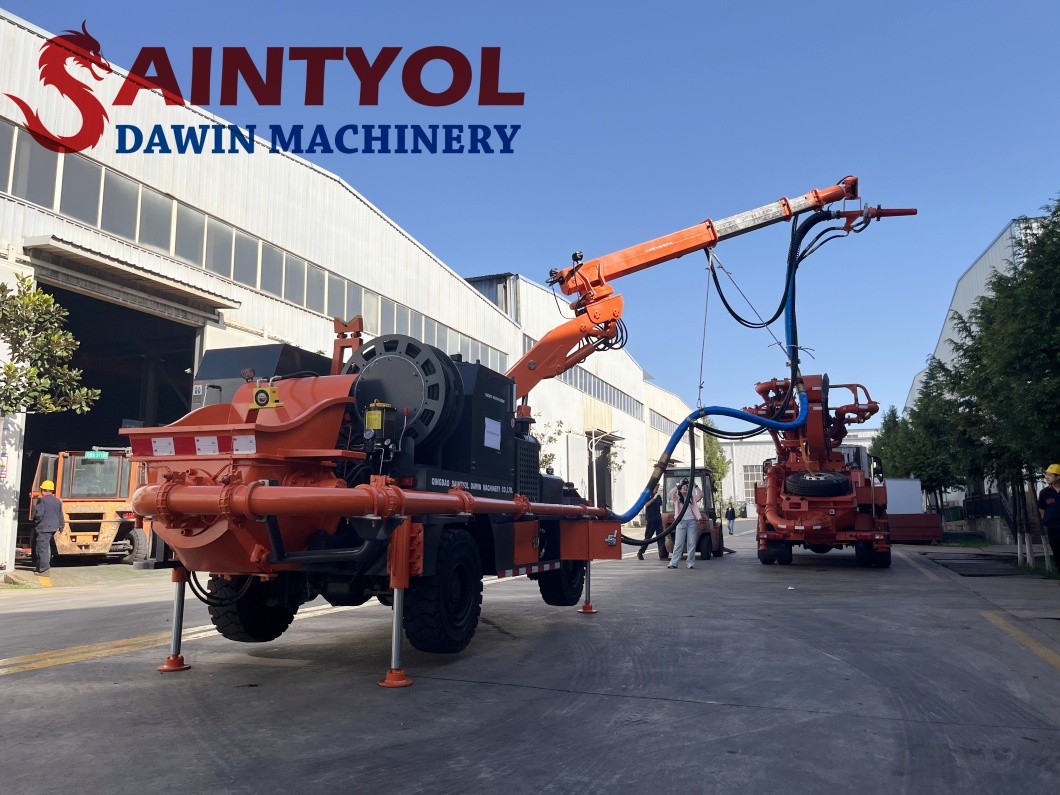

QKSP-20 concrete wet spray trolley is the most compact and flexible engineering chassis self-propelled truck mounted wet shotcrete trolley manipulator in Chinese market. It has many advantages such as compact structure, reasonable layout, powerful function, beautiful appearance, perfect performance, flexible boom, wide operating range and high reliability and so on.
Chassis:

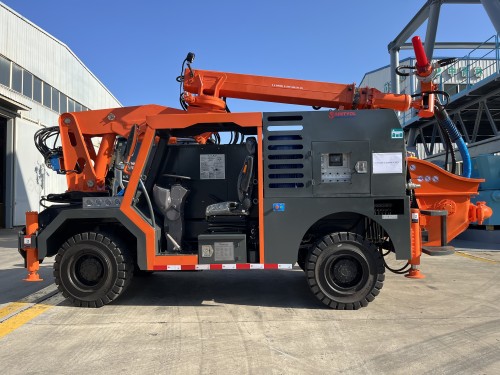

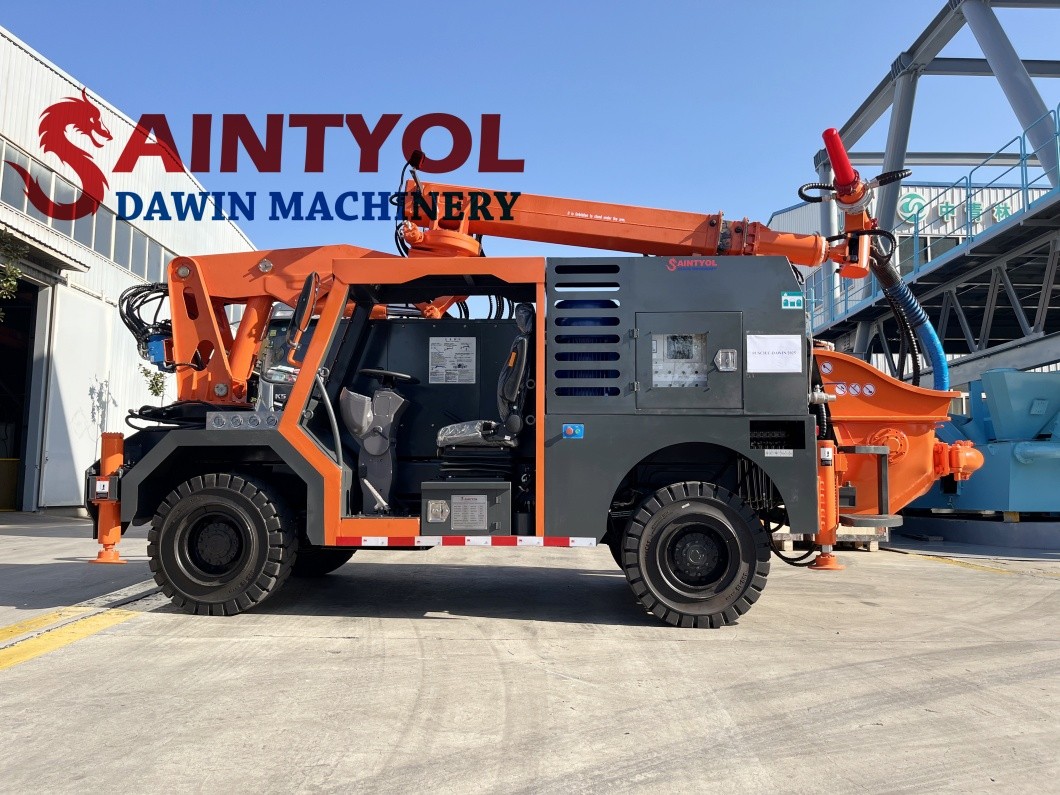

The wet concrete spraying truck cab is centered, the wheelbase is only 2.4 meters. The front axle has a swinging suspension. It has good driving performance with wide tires. The approach angle and departure angle can reach 25°, and the ground clearance is up to 0.4 meters. The whole vehicle is powered by Yuchai 62.5KW diesel EFI engine. The walking system adopts hydrostatic drive system. The steering system adopts multi-wheel steering control system, which has various steering modes, such as front wheel steering, four-wheel steering, crab walking steering and so on. The vehicle can be flexibly turned and driven in a small space.
Features:
Boom:

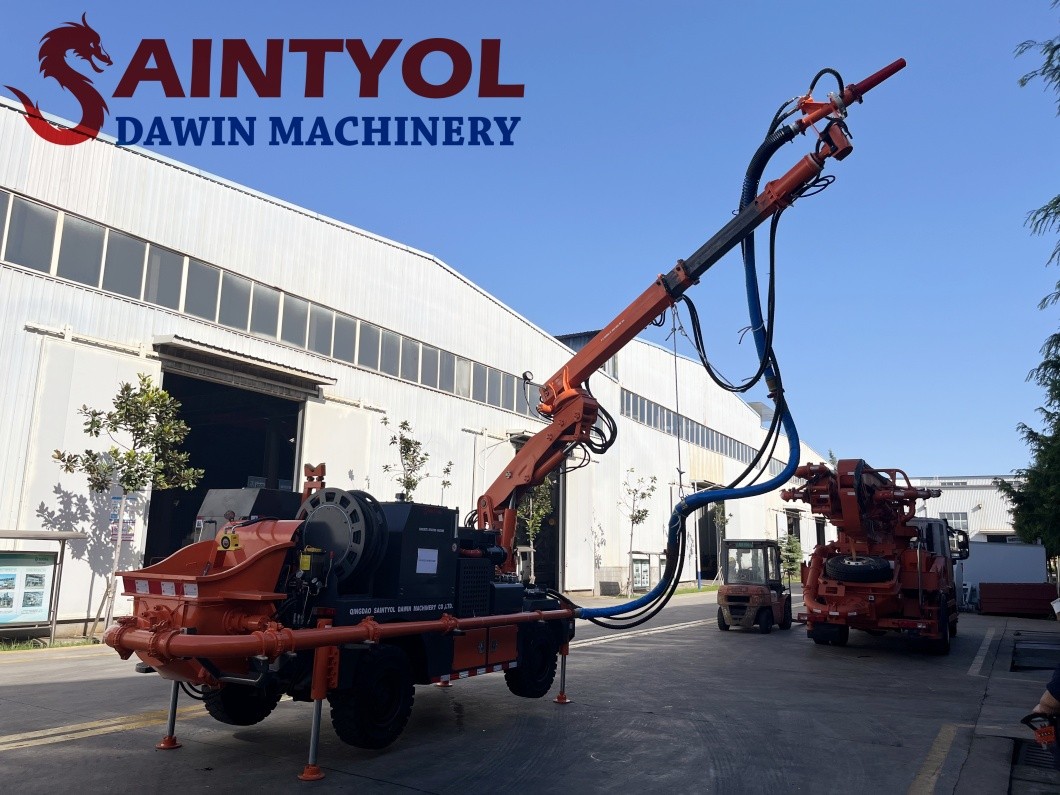

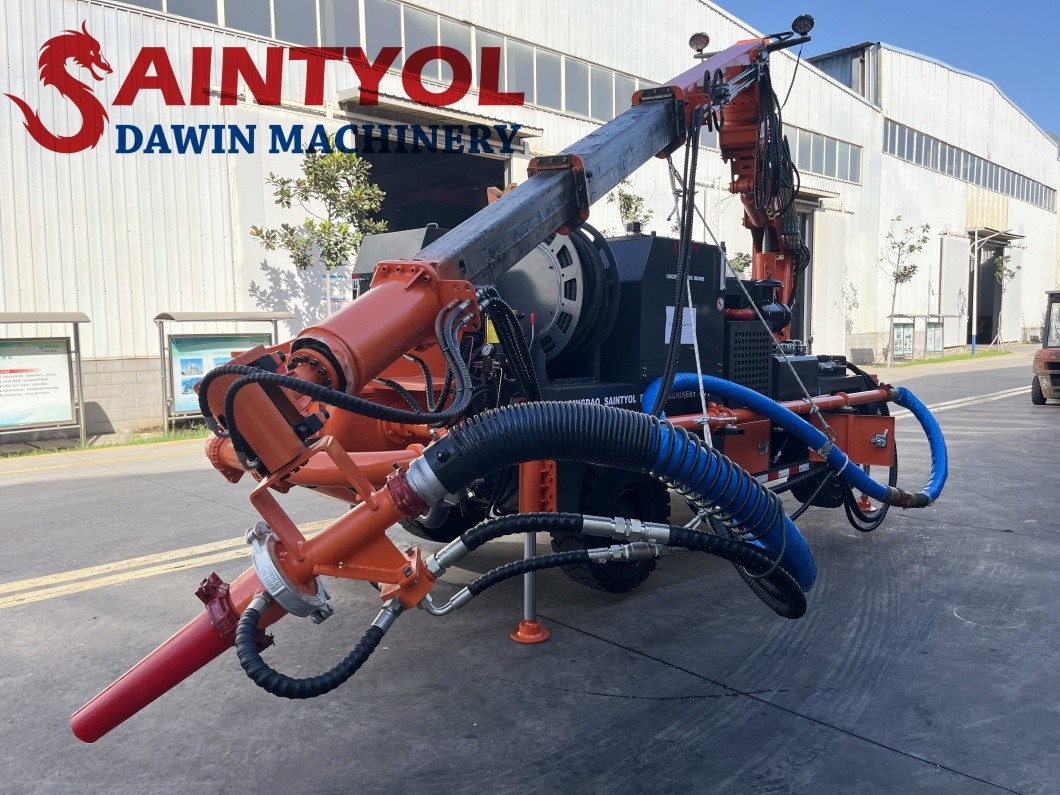

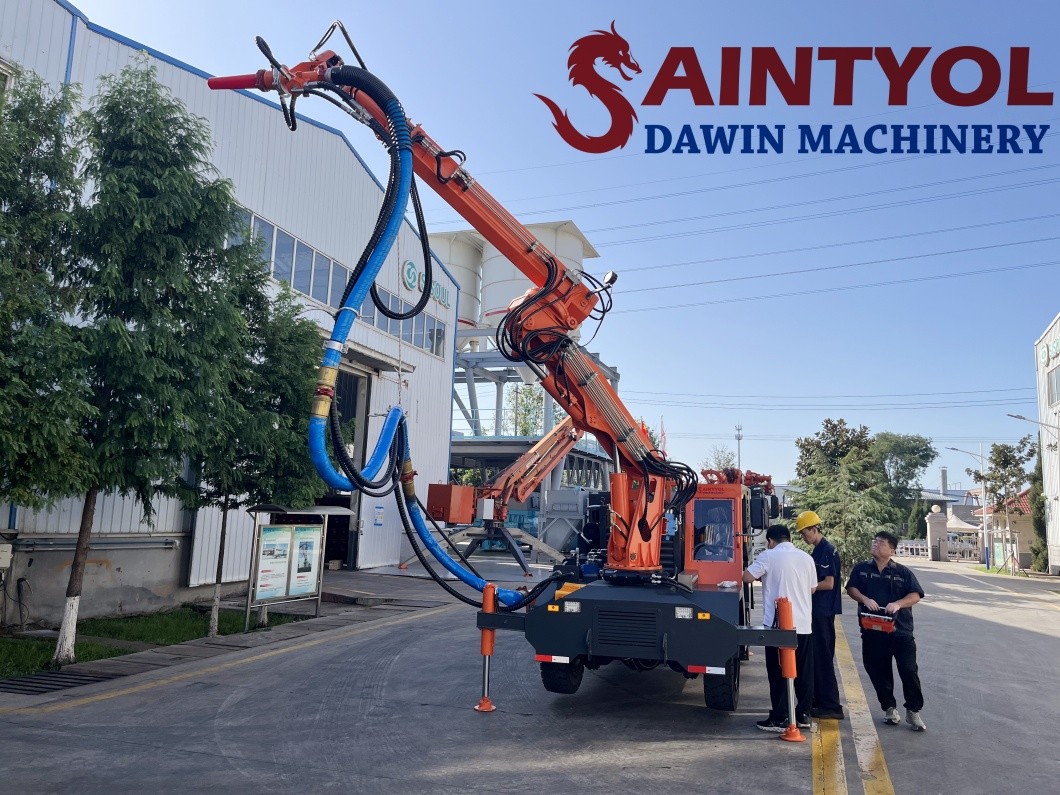

The shotcrete pump boom adopts a folding + swivel + telescopic structure. The boom manipulator has seven-axis freedom. It can perform precise head-pointing spraying and Th-like brushing spraying in all directions. After fully retracted and then rotated, the boom slewing radius is only 1.8m, which enables the boom to perform 360° unobstructed rotation in a small space. The maximum front spraying distance can reach 8m when full extension, the maximum spraying height can reach 10m, and the maximum spraying width can be up to 18m and the maximum spraying depth is up to 4.5m.
As length 5m, width 1.85m, height 2.6m concrete wet spray trolley, it can meet 3M×3M - 12M × 8M (W×H) medium and small section tunnels, roadways, slopes, culverts, mines and other concrete spray anchor support operations, the vehicle has some features such as flexibility, fast concrete spraying, low rebound, simple operation, labor saving and so on. The equipment is a flexible, reliable and cost-effective concrete wet spray manipulator.
Areas of application:
The SAINTYOL DAWIN Machinery wet concrete shotcrete pump are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
QKSP-20 wet concrete shotcrete pumpare applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
QKSP-20 Specifications:
System
Unit
specification
Boom parameters
Boom structure
Folding telescopic rotation
Jet vertical height
M
10
Jet horizontal width
M
18
Jet depth
M
4.5
Big arm pitch angle
°
60°
Manipulator horizontal angle
°
360°
Manipulator swing angle
°
240°
Main pump displacement
Ml/r
85
Boom control mode
Remote control (Electric proportional control)
Chassis parameter
Walking mode
Wheel type
Driving mode
Static hydraulic drive
Engine
kw
62.5kw/2200rpm
Max driving speed
Km/h
30
Climbing speed
%
40
Drive axle
Front and rear steering drive axle
Parking brake
Wet brake
Service brake
Hydraulic clamp disc braking
Tyre
Wide cross-country tire
Jet performance parameters
Max. Theoretical jet capacity
M3/h
20
Max. Theoretical delivery pressure
Mpa
8 (adjustable)
Max. Pumping time
t/min
25
25 (adjustable)
Distribution valve form
S tube valve
Delivery cylinder diameter
mm
Φ140
Outlet diameter
mm
125
Filling height
mm
1350
Allowable max. Aggregates diameter
mm
20
Hydraulic system
Hydraulic system mode
Open system
Main system max. Oil pressure
MPA
32
Hydraulic oil capacity
L
160
Other parameter
Accelerator tank capacity
L
400
Accelerator weighing system
Remote non-polar speed regulation + automatic control
Fuel oil tank capacity
L
100
Accelerator pump
L/H/Mpa
400/1.0
Front leg span
M
2.7
Dimension (L*W*H)
mm
5000*1850*2600
Main Parts:
Swing Arm
the boom can swing ± 45 °. can increase the flexibility of the jet mechanism to improve the single sprayable area, not only the spray surface is more smooth, beautiful, but also reduce the turntable rotation times, increase the stability of the boom
Diesel engine
Brand: Tianjin LOVOL/ Yuchai /Weichai/Cummins
Diesel engine adopts Tianjin LOVOL or Yuchai or Weichai or Cummins as custom request, which has low energy consumption and high efficiency
Pumping System
Concrete pump pumping system is the core technologies of Saintyol DAWIN Machinery,
DN140mm, 180mm, 200mm and 230mm large diameter cylinder, absorb good, pumping large displacement.
Main Oil Pump
Main oil pump adopts joint venture brand constant power variable plunger pump. Constant power control is effective to prevent the electromotor or diesel engine form overloading. It can withstand higher pressure and load than ordinary gear pump.
Cordless Remote Control
Remote control adopts domestic well-known brands, remote control distance, strong signal, no dropped calls, serial number phenomenon.The electrical components are all made by international famous brands such as Schneider, Siemens.
Cooling System
It adopts dual-cooling system, with cooling and water cooling, not only for hot climate but also for cold climate; it can effectively control the oil temperature of hydraulic system and ensure the safety and reliability
Hydraulic pipe joints
Hose joints: American Eaton; Pipeline: Original from Italy.
A set of these supported by Eaton.
S Valve
Brand: joint venture brand
Original: Germany
S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has dual advantages of anti-high pressure and anti-wearing.
