Model
HY4.0

Item specifics

Output Capability
1.2m3 1.6m3 2.0m3 2.2m3 3.5m3 4.0m3 4.2m3
Certificates
CE
Tyre
Off Road
Loading Bucket
600L
Engine
Cummins or others
Weighing System
Electrical Auto
Hydraulic Fittings
Rexroth or others
Drum Tank Rotation
270 degree

Review

Description

self loading concrete mixer truck
Instruction:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Features :
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Specifications:

HY4.0

Item

Specification



Net

9000 KG

Transmission

Full Hydraulic

4WD

Brake

Air Brake

Chassis

Off-road

Tread

1880

Wheelbase

2250mm

Loader bucket

capacity

0.6m3

Control

Hydraulic

Tilt angle

30%



Speed

High

0-25KM/H

Low

0-9KM/H

Mini turning radius

6.5M/R

Tyre model

16/70-20

 Engine

 Type

Cummins

Rated Power/RPM

93KW/2200RPM/125HP 2200RPM (4BTA3.9-C125)

Max.Torque/RPM

475N.M/1500RPM

Cylinder

4

Starter

Electric

Cooling type

water cooling



Maxing Drum

Drum capacity

6.0M3

Mixing Capacity

4.0M3

Bank Angle

16 °

Rotation Angle

17-21R/min



Chute

Swing Angle

≥60°

Angle control

Hydraulic

Size

Long:176cm

Short40cm

Loader

Weighing model

computer control

Concrete Standard

C15.C20.C25 C30

 Accuracy

concrete

≤±2%/time

Relative  Error

≤±3%/time

water

≤±1%/time

Additive

≤±1%/time

Admixture

≤±2%/time

 Control

One hydraulic 4 way stick

Overall size

7500*2700*3380(4760)

Main Parts:
self loading concrete mixer hydraulic system
Efficient hydraulic drive system
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.
self loading concrete mixer mixing technology
Four-dimensional mixing technology
Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.
Unique continuous trace design is used,with residual rate≤0.4%.
self loading concrete mixer operations system
Safe and flexible operation system
Longitudinal resistance-free design is used,to provided more flexible manipulation.
Front and rear linkage double-limit structure is used,to provide higher safety.
self loading concrete mixer water supply system
Convenient water supply system
Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast.
Liner water tank structure is used with service life increased by 50%.
self loading concrete mixer truck details
self loading concrete mixer work with concrete pump

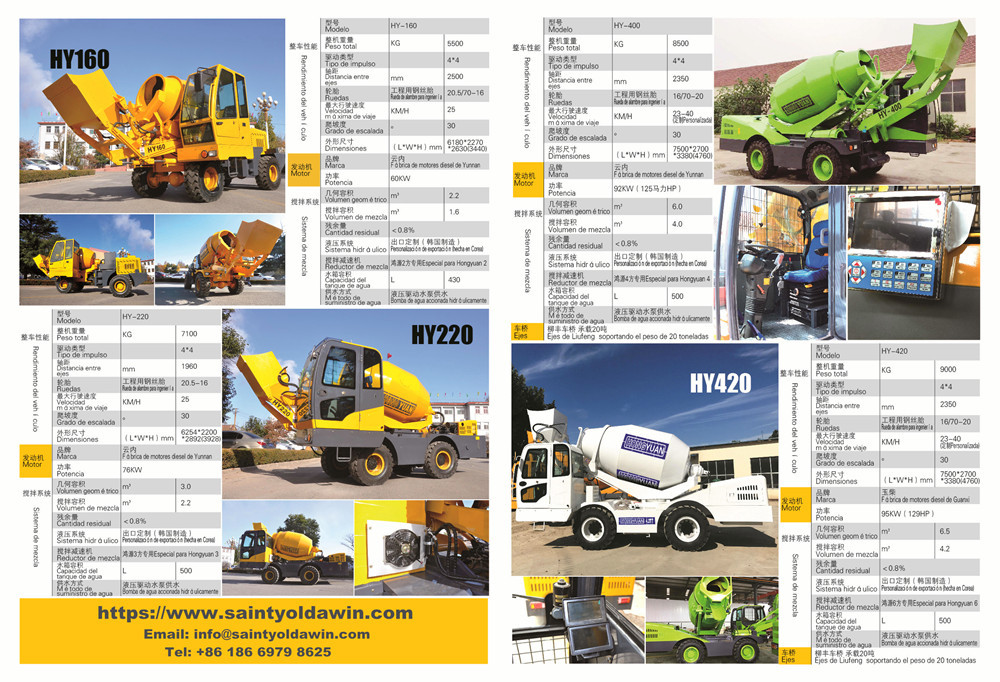

self loading concrete mixer truck models
Package & Shipping :
self loading concrete mixer shipping and packaging
Job Site Performance:
self loading concrete mixer job site performance
