Model
HGY21

Item specifics

Motor
22KW
Max. Placing height (m)
24.5m
Placing Radius
21m
Boom Sections
4M
Certificates
CE , SafeWork
Weight
10500kg

Review

Description

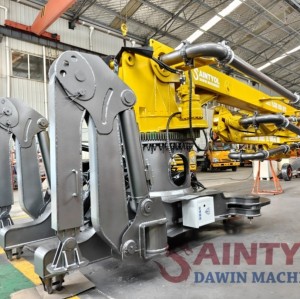

 HGY21 spider hydraulic concrete placing boom
21m trailer mobile spider concrete placing boom
Instruction:

This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.

1. HGY spider hydraulic concrete placing boom can be placed according to needs of field pouring;
2. Compact structure, light weight, and can be hoisted and transported as a complate part;
3. Flexible, mobile placing boom is being widely useD and applicable for complex construction site;
4. Easy operation, safe and reliable, economical and practical.
Features:
A.Auto robot cordless remote control system.

B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.

C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.

D.Labors saving.The robot concrete placing boom with cordless remote control foldable arms section, 13m is "Z" shape, 15m and 17m are "R" shape, 21m and 23m are 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.

E.Less wearing parts.There is no extra wearing parts to the concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.

F.Easier transportation and installation. The trailer mobile concrete placing boom could be separated in several smaller pares to be lifted by crane on job sites and installed in short time.

G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.

H.Short manufacturing time.Trailer mobile concrete placing from Saintyol DAWIN machinery there would be common stocks to HGY13 HGY15 and HGY17 models, orders could be short into 15 days or less.
Specifications:

 Model

HGY21

Permance

Horizontal reach(m)

21m

 Rotation(°)

360°

Elevation angle(°)

0~90°

 Slewing brake

 Normally closed

 Working environment temperature

-5℃~40℃

Weight(T)

 Weithout counterweight

7.7

 Counterweight

9.9

 Outrigger Span

4230×4230

Control System

 Power

380V/50HZ

Output(kW)

22

 Ptotection grade

IP54

 Insulation clas

F

 System Pressure(MPa)

32

 Control mode

 Cable/Radio remote

Boom

 Duct cleaning method

Wash/Dry cleaning

 Boom open way

 Four M

Inner diameter of delivery pipe(mm)

Φ125

End rubber hose(m)

3

Length(mm)

6500/4600/4600/5207

Weight

10500KG

Working Range:
mobile hydraulic spider concrete placing boom
Upper Parts Drawing:
21m trailer mobile spider concrete placing boom China supplier
Each Part Dimension and Weight:
Live Photos :
trailer mobile spider concrete placing boom job site performance
Testing Video:
Concrete Placing Boom E-Brochure
